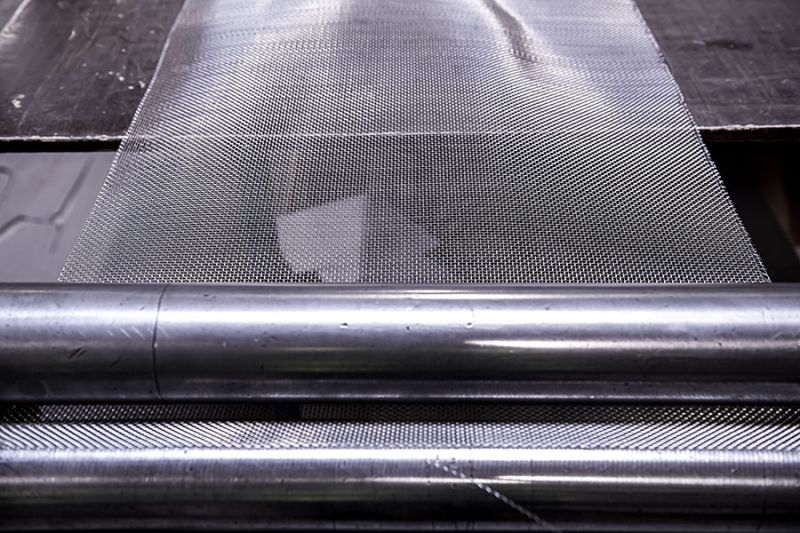

Närbild på metallduk
A functional and flexible solution for a wide range of applications

Metal cloth

Metal cloth is a material that is made using metal threads that are interlaced or woven together in a similar way to creating textiles. The result is a very useful material that combines both functionality and flexibility. The applications for metal cloth are numerous, and it is well suited for both industrial and general applications. Some examples of common applications are filtration, protection and ventilation.

At Tidbecks, we offer customised metal cloth in stainless/acid-proof steel and aluminium. The best material for you depends entirely on its application as well as the required strength, weight and durability. If you are not sure what your specific needs are in terms of the material requirements, we are happy to help you find the most optimal solution.
Metal cloth
  • Stainless/acid-proof
  • Aluminium
See product data

Stainless/acid-proof

Strong, durable and corrosion-resistant, even in very demanding environments Stainless acid-proof steel cloth in rolls. Material: equivalent to AISI 316. Mesh No. = Number of stitches/25.4 mm.
Atricel number Mesh size (mm) Wire (mm) Mesh no Width (mm) Open Area(%) Weight(kg/m2)
DSL0005 6,00 1,20 3,5/2 1000 69 2,7
DSL0010 5,35 1,00 4 1000 68 2,8
DSL0015 4,08 1,00 5 1000 64 2,6
DSL0025 3,23 1,00 6 1000 64 2,5
DSL0040 2,47 0,70 8 1000 61 2,0
DSL0050 2,17 1,00 8 1000 47 4,0
DSL0055 1,95 0,60 10 1200 58 1,9
DSL0070 1,61 0,50 12 1200 58 1,5
DSL0080 1,36 0,45 14 1200 56 1,4
DSL0100 1,23 0,40 16 1220 56 1,3
DSL0110 1,00 0,60 16 1200 39 2,9
DSL0115 1,00 0,40 18 1000 51 1,5
DSL0130 0,97 0,30 20 1200 52 1,3
DSL0145 0,76 0,30 24 1200 50 1,2
DSL0160 0,60 0,25 30 1200 51 1,0
DSL0170 0,50 0,22 35 1200 49 0,9
DSL0185 0,43 0,20 40 1200 47 0,8
DSL0190 0,31 0,20 50 1200 44 0,8
DSL0200 0,27 0,15 60 1200 37 0,8
DSL0210 0,20 0,125 78 1200 38 0,8
DSL0215 0,15 0,10 100 1200 38 0,5
DSL0220 0,12 0,009 120 1020 34 0,5
DSL0230 0,08 0,05 200 1300 36 0,3

Insect netting: Aluminium

Aluminium metal cloths are corrosion-resistant, malleable and are very lightweight. Aluminium cloth in a roll. Length: 30.5 m. Custom-made metal cloth with different mesh size or wire diameters can be provided on request, as well as cut-out sieves and filters.
Atricel number Mesh size (mm) Wire (mm) No/25,4 (mm) Width (mm) Open Area (%) Weight (kg/m2)
DAL0005 1,3×1,1 0,25 16/18 150 68 0,9
DAL0010 1,3×1,1 0,25 16/18 200 68 1,2
DAL0015 1,3×1,1 0,25 16/18 300 68 1,8
DAL0021 1,3×1,1 0,25 16/18 610 68 3,5
Any questions?
Do not hesitate to contact us, we are happy to help you!
Contact us
